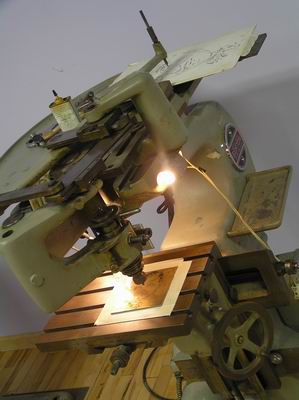

From the early 1930's up to the late 1950's engravings on Zippo lighters were done by using a pantograph. A finger connected to the pantograph followed the template contours and the tool at the top of the pantograph engraved the lighter. It was possible to engrave the same pattern at different scales. Pantograph plates have a size of 4 x 4 inches and are made of solid brass.

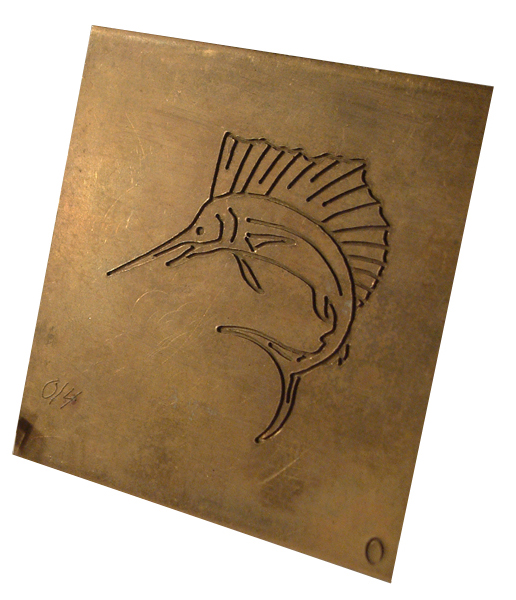

my marlin

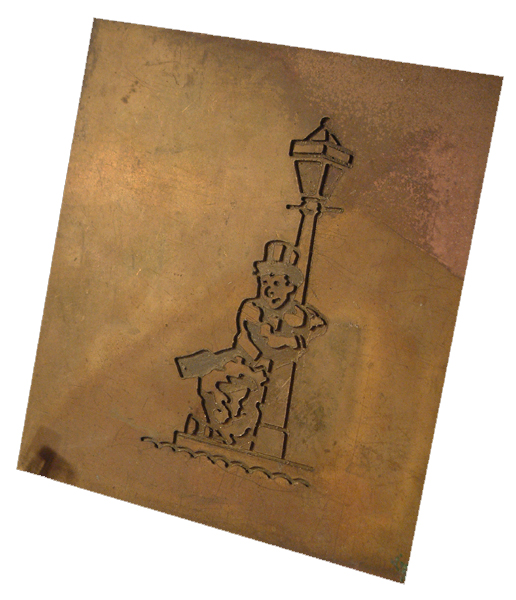

the reveler courtesy of Paul "free spirit" Fleming from New Zealand

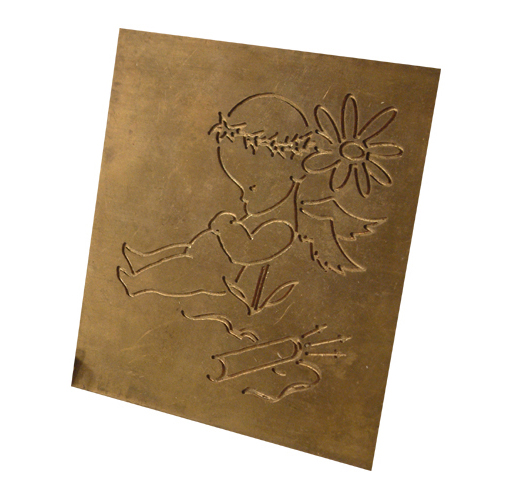

the little angel as known from the town & country series

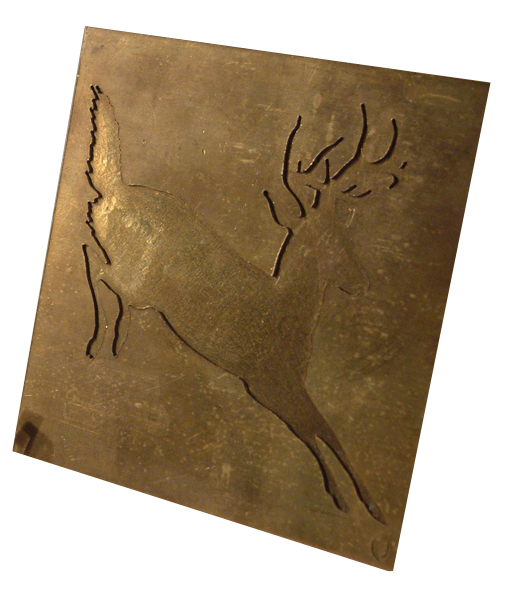

the deer as known from the sports series

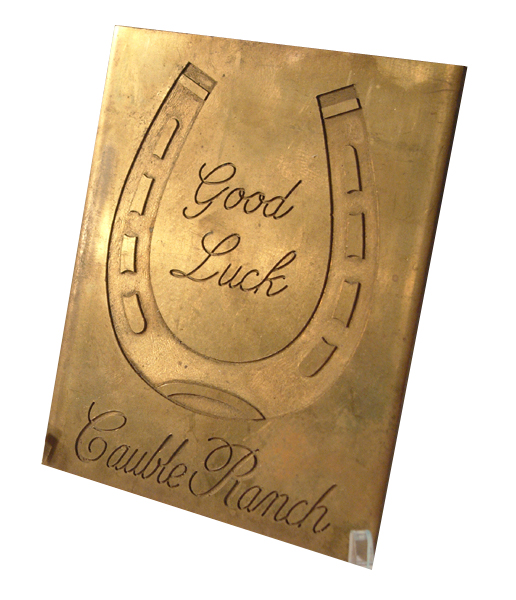

best wishes from the Cauble Ranch

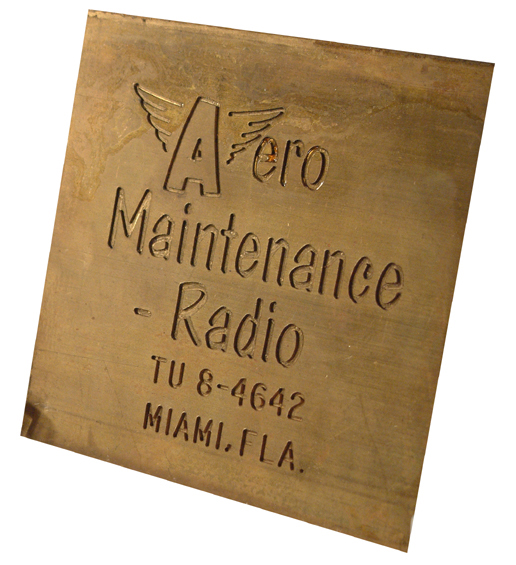

Aero Maintenance - Radio Miami Florida

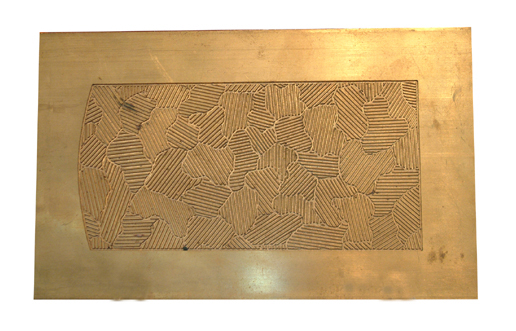

a surface design for 10k gold filled slims

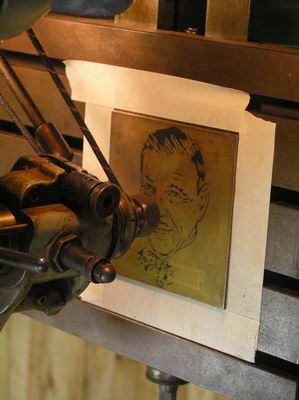

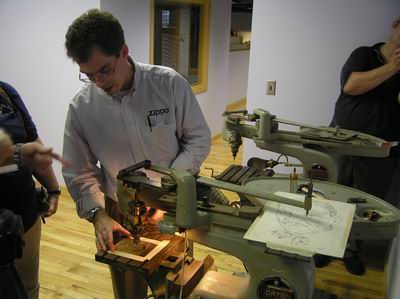

On location at Zippo's Head Office at Barbour Street. One of Zippo's employees demonstrates how artwork was reduced by a factor of 9,& then reduced by 9 again to get it the right size for a Zippo.

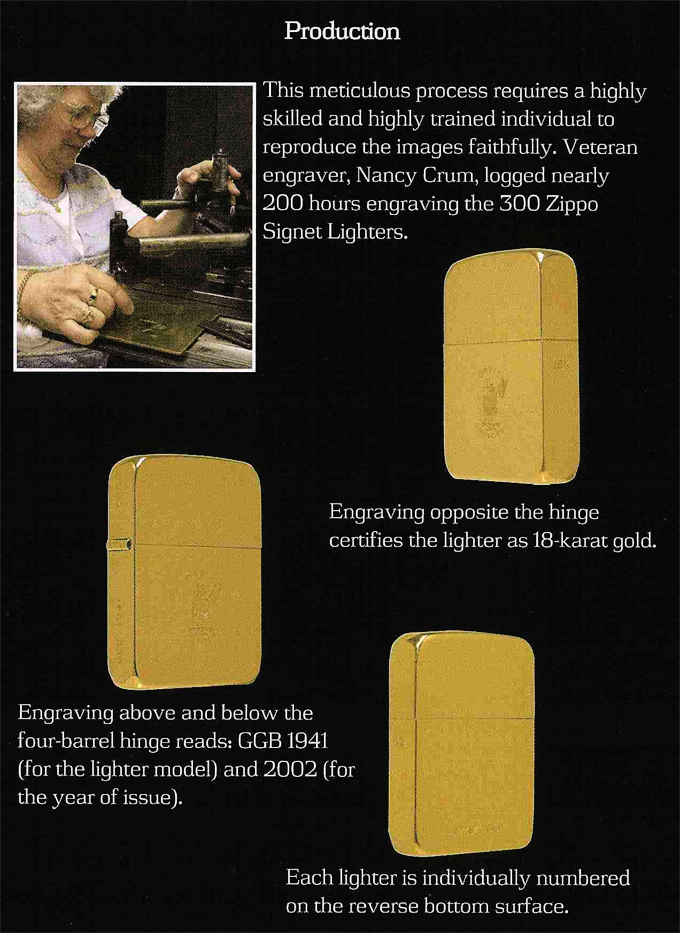

in 2002 the pantograph engraving process was once again used for the production of the Zippo signet lighters.
